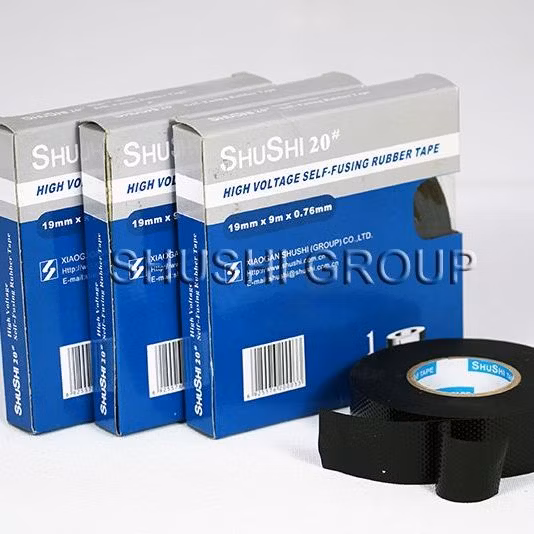

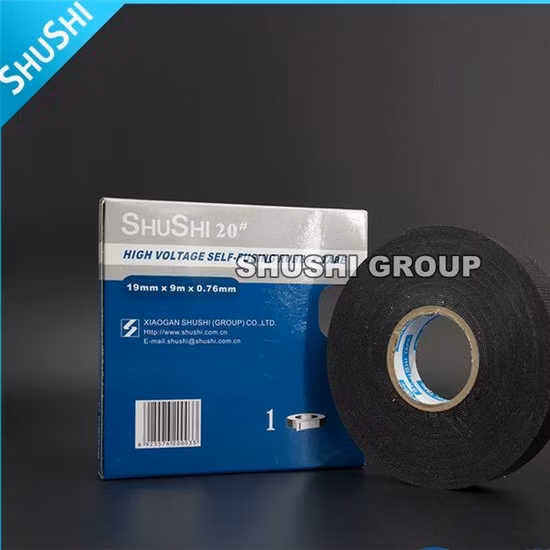

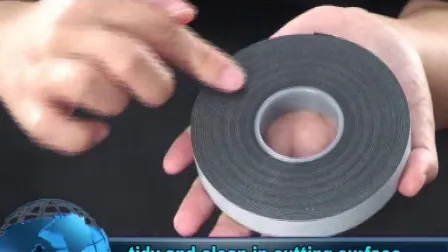

High Voltage Waterproof Epr Self Fusing Tape
Technical Specifications: Production ProcessProduct Package: Location and Shipping Quality Assurance Company profile His
Send your inquiryDESCRIPTION
Basic Info.
| Model NO. | Rubber |
| Base Material | Rubber |
| Type | Insulating Tape |
| Tensile Strength | 1.0MPa |
| Disruptive Strength | 10.0kv/mm |
| Elongation | 500% |
| Width | 18mm |
| Length | 7.5 |
| Thickness | 0.76mm |
| Transport Package | Export Carton |
| Specification | 0.76mm*18mm*7.5 |
| Trademark | SHUSHI |
| Origin | China |
| HS Code | 4008210000 |
| Production Capacity | 8000 Cartons/Day |
Product Description
Technical Specifications:| PROPERTY | UNIT | DATA | Test Method |
| Adhesive | Pressure Sensitive Adhesive | ||
| Surface | Matte | ||
| Thickness | mm | 0.76 | ASTM D4325 |
| Tensile Strength | Mpa | 1.0 | ASTM D4325 |
| Elongation | % | 500% | ASTM D4325 |
| Disruptive Strength | kV/mm | 10.0 | ASTM D4325 |
| Temperature rating | °C | 0~80 | ASTM D4325 |
| Voltage rating | kV | 10 | ASTM D4325 |
| Standard core | Paper core Inner: 38mm, outer: 44mm; Plastic core: 43mm | ||
Location and Shipping
Quality Assurance
Company profile
| Found Time | 1993 |
| Total Area | 280,000 square meter |
| Address | Hubei Xiaonan Economical Development District,Xiaonan Area,Xiaogan City, Hubei Province,China. |
| Main Product | PVC Electrical Tape, High Voltage Self-fusing Rubber Tape, Fiber Insulating Tape, Industrial Tape, PVC Wire Harness Tape, Duct Tape, Air-conditioner Wrapping Tape.etc. |
| Sold Method | Directly export to oversea market |
| Advantage | 1.Produce PVC film and Glue by ourselves. 2.Professional Manufacturer much more than 26 years, 3.Short L/T, fast delivery 4.Stable quality, Long guarantee period5.OEM/ODM, and customization is acceptable 6.Jumbo roll product available |
| 1993 | Xiaogan Zhongnan Rubber Factory was founded. |
| 1996 | The company introduced and installed the BOPP new product line and started the production of BOPP packing tape. Since then, the products developed from single insulating tape to BOPP packing tape;The company's product exported to Russia at the first time. |
| 1998 | Xiaogan SHUSHI Group was founded who was the First Founded Private Group Enterprise in Xiaogan City. |
| 1999 | The SHUSHI trademark was rated as The Hubei Famous Brand. |
| 2000 | SHUSHI Group Party Branch was founded who was the first non-public enterprise party organization in Xiaogan City;SHUSHI Insulating Tape was rated as the Hubei Famous Brand products. |
| 2001 | The company got the Import and Export License;The member of the Politburo, the Chairman of the National Committee of CPPCC, and the Former Secretary of Hubei province Yu Zhengsheng inspected our company. |
| 2002 | The company passed the ISO9001 International Quality Management Systerm Certificate. |
| 2003 | The company invested 62 million Yuan to build the new SHUSHI industrial park. |
| 2004 | The Chairman and General Manager of our company was awarded the title of China Excellent Socialist Builders by the people's Government of Hubei province. |
| 2005 | SHUSHI Industrial Park was built and put into operation. |
| 2008 | Under the global financial crisis, the company fully implemented the Precise Management (PECS). |
| 2010 | Our products passed the RoHS Certification. |
| 2011 | The manufacturing workshop completed and successful trial production of PVC film;The company became a one-stop manufacturer of PVC film, pressure sensitive adhesive and adhesive tape;The company won Double-strong and Top 100 Enterprise of Hubei province. |
| 2014 | SHUSHI brand was rated as China Well-known Trademark;Wise Bird was criticized as Hubei Famous Brand;The company has obtained the honorary title of Xiaogan City Government Quality Award. |
| 2016 | The company passed the ISO / TS16949 Certification of Automotive Industry Quality anagement System. |
| 2017 | The company started the construction on the expansion project of adhesive tape with an annual output of 120 million square meters. The company products passed the United States UL certification, and attended the Exhibitions in the United States. |
| 2018 | The company's "Wise Bird" trademark was recognized as a Chinese Well-known Trademark. The company name Xiaogan Shushi (Group) Co., Ltd. was changed to be Shushi Group Co., Ltd. The company won the "Hubei May 1st Labor Medal". Shushi Group passed the certification of the national high-tech enterprise. |
